Flexible wedge design shall be a one-piece construction, but the wedge design shall allow flexibility between the two faces for a tight seating over a wide range of differential pressures and temperatures. It shall be able to adjust for slight misalignments caused by manufacturing tolerances or piping deflections. Flexible wedge type shall be used for sizes larger than DN 40.

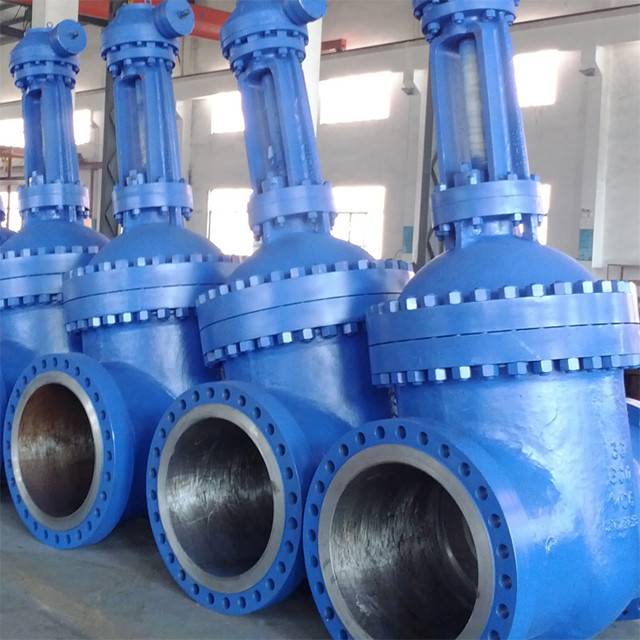

Online InquiryAPI 600 Wedge Gate Valve Gear Operated
Flexible wedge design shall be a one-piece construction, but the wedge design shall allow flexibility between the two faces for a tight seating over a wide range of differential pressures and temperatures. It shall be able to adjust for slight misalignments caused by manufacturing tolerances or piping deflections. Flexible wedge type shall be used for sizes larger than DN 40.
Size and Range:
Size: 16” ~ 48”
Pressure Rating: 150LB ~ 2500LB
Temperature: -196Deg. C ~ 600Deg. C
Applicable Standards:
Design & Manufacture: API 600
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5, ASME B16.47 A/B SERIES
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Fugitive Emission: ISO 15848
Main Character:
Body Structure: Bolted Bonnet
Construction: Flexible Wedge Gate Valve
Bore: Full Bore
Connection: RF Flange, BW, etc.
Operation: Gear Operated, Pneumatic Operated, Motor Operated, etc.
Material Available:
|
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
|
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
|
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
|
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Applications:
TFC Valve API 600 Wedge Gate Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
