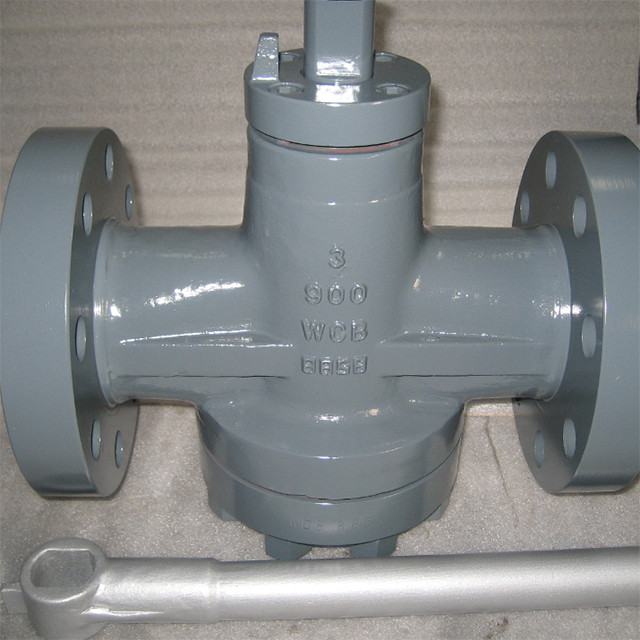

Online InquiryCast Steel Lubricated Plug Valve
These shall be inverted pressure balance type plug valve with reduced or full port plug and shall only be used if the product allows the use of lubricant. Lubricants shall contain a base oil and a viscosity improver like amorphous or fumed silica
Size and Range:
Size: 2” ~ 24”
Pressure Rating: 150LB ~ 1500LB
Temperature: 0Deg. C ~ 80Deg. C
Applicable Standards:
Design & Manufacture: API 6D, API 599
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Fire Safe: API 607
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Main Character:
Body Structure: Bolted Bonnet
Construction: Lubricated Plug Valve
Bore: Full Bore / Reduced Bore
Connection: RF Flange, BW, etc.
Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.
Material Available:
|
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
|
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
|
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
|
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Applications:
TFC Valve Lubricated Plug Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Water & Waste Water Treatment, etc.
