Configuration of valves, which includes two valves in series and has a bleed valve in between. Total isolation of the pipework is achieved when both valves are closed and the bleed is open

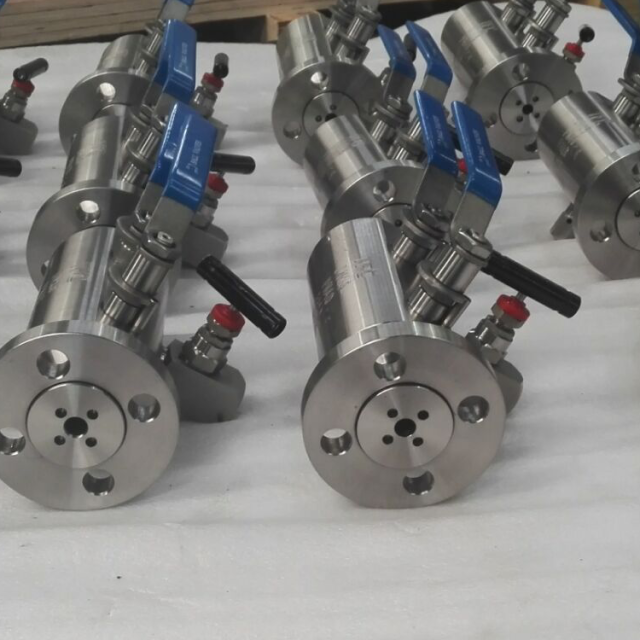

Online InquiryDBB Ball Valve
Configuration of valves, which includes two valves in series and has a bleed valve in between. Total isolation of the pipework is achieved when both valves are closed and the bleed is open
Size and Range:
Size: 1/2” ~ 24”
Pressure Rating: 150LB ~ 2500LB
Temperature: -196Deg. C ~ 600Deg. C
Applicable Standards:
•Design & Manufacture: API 6D
Main Character:
Body Structure: Split Body, Side Entry
Construction: Floating Ball
Bore: Full Bore / Reduced Bore
Connection: RF Flange, SW, Threaded NPT, etc.
Operation: Lever Operated, Gear Operated
Main Features:
Locking Device
Anti blowout design
Fire safe design
Antistatic design
Automatic cavity relief
Material Available:
|
Carbon steel |
ASTM A105 , etc |
|
Low temperature steel |
A350 Gr. LF2 , etc |
|
Cr-Mo steel |
A182 Gr. F11 , F22 , etc |
|
Stainless Steel |
A182 Gr. F304 , F304L , F316 , F316L , F321 , F347 , etc |
|
Alloy steel |
Alloy 20 , etc |
|
Super duplex |
A182 Gr. F51 , F53 , F55 , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
Monel K400, K500 |
|
Inconel |
Inconel 600 , etc |
|
Hastelloy |
Hastelloy B , Hastelloy C276 , etc |
|
Incoloy |
Incoloy 825 , Incoloy 625 , etc |
Applications:
TFC Valve DBB Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, etc.
