Forged Steel Solid Wedge Gate Valve

Forged Steel Solid Wedge Gate Valve

A solid wedge type shall be normally used in sizes from DN 15 up to DN 40. Solid wedge shall incorporate a simple design with good background experienced.

Online Inquiry

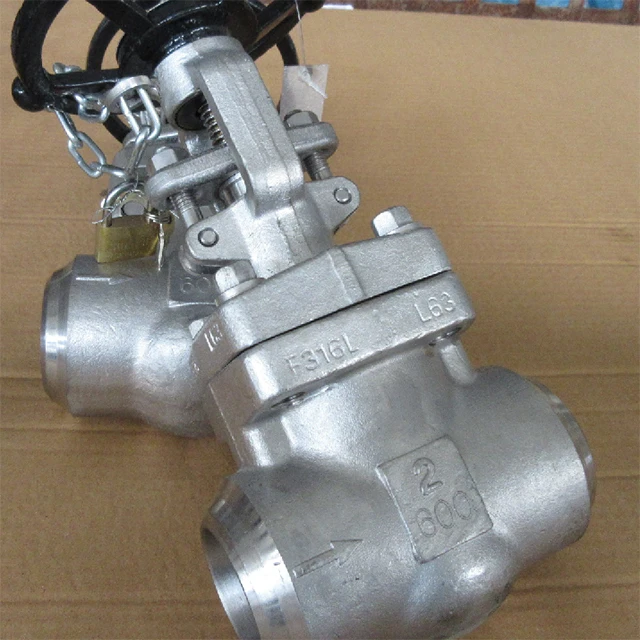

Forged Steel Solid Wedge Gate Valve

A solid wedge type shall be normally used in sizes from DN 15 up to DN 40. Solid wedge shall incorporate a simple design with good background experienced.


Size and Range:

Size: 1/2” ~ 2”

Pressure Rating: 150LB ~ 2500LB

Temperature: -196Deg. C ~ 600Deg. C


Applicable Standards:

Design & Manufacture: API 602

Face to Face: ASME B16.10

End Dimensions: ASME B16.5, ASME B16.11, ASME B16.25 etc.

Pressure & Temperature: ASME B16.34

Test & Inspection: API 598

Visual Inspection: MSS-SP-55

Marking: MSS-SP-25

Fugitive Emission: ISO 15848


Main Character:

Body Structure: Bolted Bonnet

Construction: Forged Steel Solid Wedge Gate Valve

Bore: Full Bore / Reduced Bore

Connection: RF Flange, SW, BW, Threaded NPT, etc.

Operation: Handwheel Operated, Gear Operated, Pneumatic Operated, Motor Operated, etc.


Material Available:

Carbon steel

ASTM A105 , etc

Low temperature steel

A350 Gr. LF2 , etc

Cr-Mo steel

A182 Gr. F11 , F12, F22 , F91, F5, etc

Stainless Steel

A182 Gr. F304 , F304L , F316 , F316L , F321 , F347 , etc

Alloy steel

Alloy 20 , etc

Super duplex

A182 Gr. F51 , F53 , F55 , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

Monel K400, K500

Inconel

inconel 600 , etc

Hastelloy

Hastelloy B , Hastelloy C276 , etc

Incoloy

Incoloy 825 , Incoloy 625 , etc


Applications:

TFC Valve Forged Steel Solid Wedge Gate Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
