These valves shall have a metallic seat and shall be suitable for higher temperatures between -50 °C and 400 °C up to ASME 1500 class, the valves shall be supplied with either laminated, metal and graphite or solid seats. Solid seats shall be specified for temperatures outside this pressure-temperature envelope

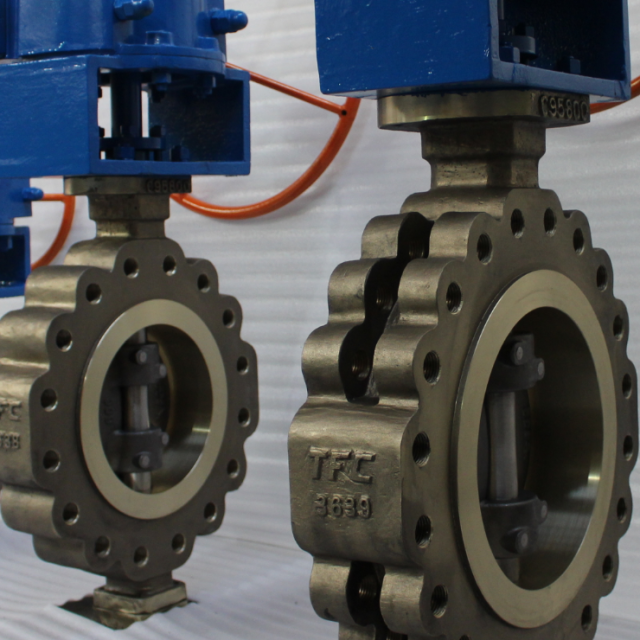

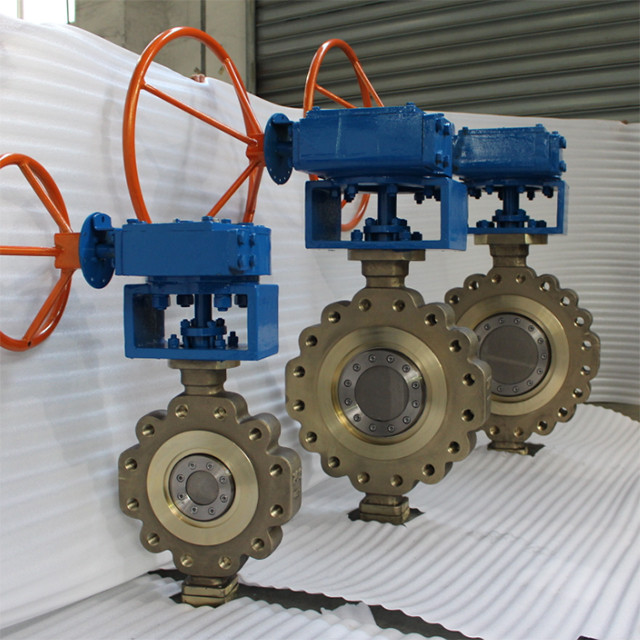

Online InquiryLug Type Triple Offset Butterfly Valve
These valves shall have a metallic seat and shall be suitable for higher temperatures between -50 °C and 400 °C up to ASME 1500 class, the valves shall be supplied with either laminated, metal and graphite or solid seats. Solid seats shall be specified for temperatures outside this pressure-temperature envelope
Size and Range:
Size: 2” ~ 80”
Pressure Rating: 150LB ~ 1500LB
Temperature: -196Deg. C ~ 600Deg. C
Applicable Standards:
Design & Manufacture: API 609
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5, ASME B16.47 A/B
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Fugitive Emission: ISO 15848
Main Character:
Body Structure: Lug Type Butterfly Valve
Construction: Triple Offset Butterfly Valve
Disc Sealing: Laminated Disc Sealing / Solid Metal Disc Sealing
Connection: Lug Type to suit ASME flange, or other standard.
Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.
Flow Direction: Uni-Direction, Bi-Direction upon request.
Material Available:
|
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
|
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
|
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
|
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Applications:
TFC Valve Triple Offset Butterfly Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
