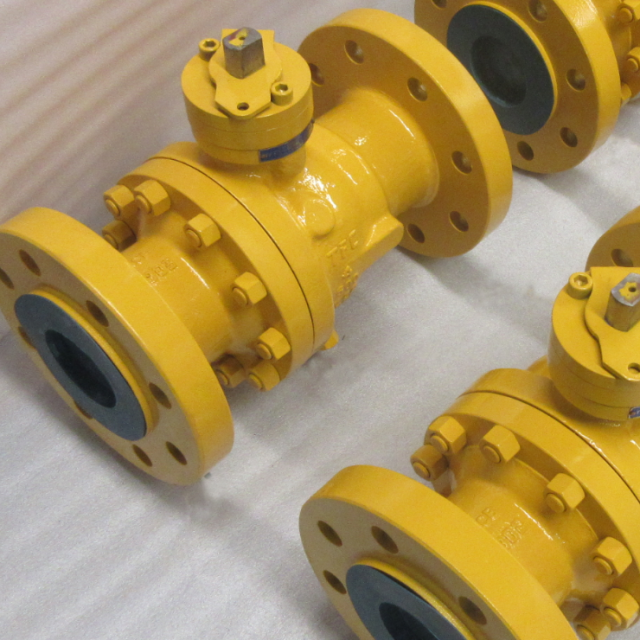

Cast Steel Floating ball Valve

Cast Steel Floating ball Valve

Ball valve in which the ball is not rigidly held on its rotational axis and so is free to float between the seat rings

Online Inquiry

Floating Ball Valve

Ball valve in which the ball is not rigidly held on its rotational axis and so is free to float between the seat rings


Size and Range:

Size: 1/2” ~ 10”

Pressure Rating: 150LB ~ 2500LB

Temperature: -196Deg. C ~ 600Deg. C


Applicable Standards:

  •Design & Manufacture: API 6D

  •Face to Face: ASME B16.10
  •Flange Dimensions: ASME B16.5
  •Pressure & Temperature: ASME B16.34
  •Test & Inspection: API 598
  •Fire Safe: API 607
  •Visual Inspection: MSS-SP-55
  •Marking: MSS-SP-25
  •Fugitive Emission: ISO 15848



Main Character:

Body Structure: Split Body, Side Entry

Construction: Floating Ball

Bore: Full Bore / Reduced Bore

Connection: RF Flange, SW, BW, Threaded NPT, etc.

Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.


Main Features:

Locking Device

Anti blowout design

Fire safe design

Antistatic design

Automatic cavity relief


Material Available:

Carbon steel

A216 Gr. WCB , WCC , WCA , etc

Low temperature steel

A352 Gr. LCB , LCC , LC1 , etc

Cr-Mo steel

A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc

Stainless Steel

A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc

Alloy steel

CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc

Super duplex

A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

M30C , M35-1 , CZ100 , etc

Inconel

CY40 inconel 600 , etc

Hastelloy

CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc

Incoloy

CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc


Applications:

TFC Valve Floating Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
