Ball valve in which the ball is not rigidly held on its rotational axis and so is free to float between the seat rings

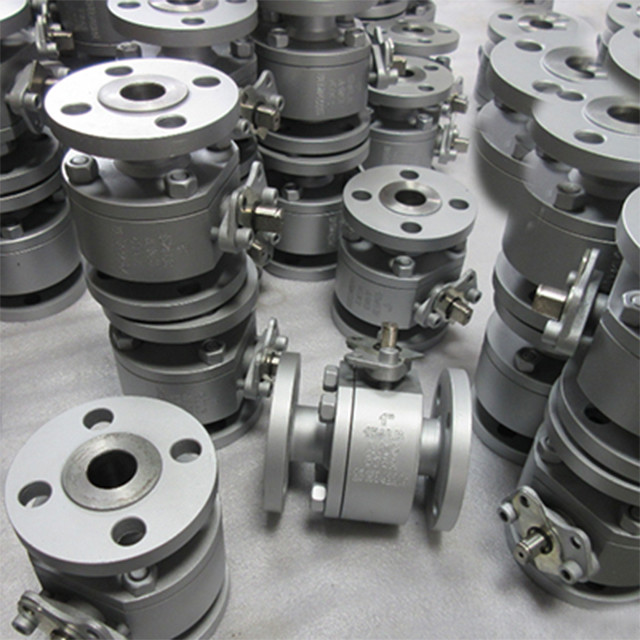

Online InquiryForged Steel Floating Ball Valve Flange End
Ball valve in which the ball is not rigidly held on its rotational axis and so is free to float between the seat rings
Size and Range:
Size: 1/2” ~ 10”
Pressure Rating: 150LB ~ 2500LB
Temperature: -196Deg. C ~ 600Deg. C
Applicable Standards:
Design & Manufacture: API 6D
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Fire Safe: API 607
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Fugitive Emission: ISO 15848
Main Character:
Body Structure: Split Body, Side Entry
Construction: Floating Ball
Bore: Full Bore / Reduced Bore
Connection: RF Flange, SW, BW, Threaded NPT, etc.
Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.
Main Features:
Locking Device
Anti blowout design
Fire safe design
Antistatic design
Automatic cavity relief
Material Available:
|
Carbon steel |
ASTM A105 , etc |
|
Low temperature steel |
A350 Gr. LF2 , etc |
|
Cr-Mo steel |
A182 Gr. F11 , F22 , etc |
|
Stainless Steel |
A182 Gr. F304 , F304L , F316 , F316L , F321 , F347 , etc |
|
Alloy steel |
Alloy 20 , etc |
|
Super duplex |
A182 Gr. F51 , F53 , F55 , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
Monel K400, K500 |
|
Inconel |
inconel 600 , etc |
|
Hastelloy |
Hastelloy B , Hastelloy C276 , etc |
|
Incoloy |
Incoloy 825 , Incoloy 625 , etc |
Applications:
TFC Valve Floating Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
