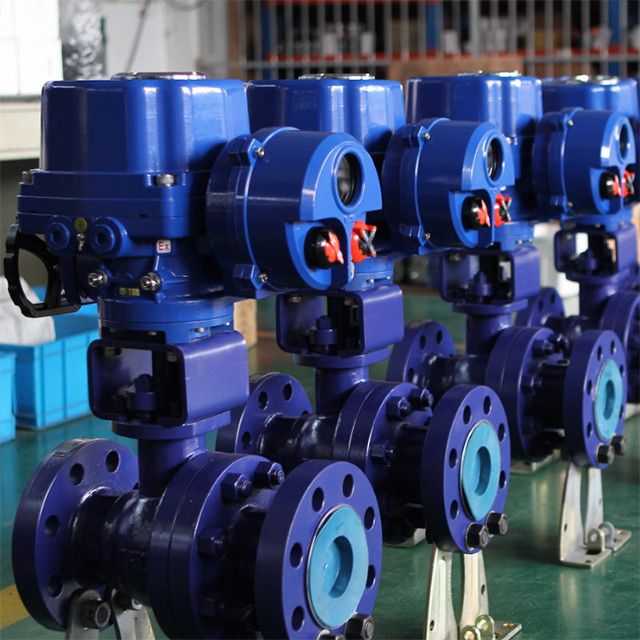

Electric Ball Valve

Electric Ball Valve

Ball valve in which the ball is not rigidly held on its rotational axis and so is free to float between the seat rings

Size and Range:

Size: 1/2” ~ 10”

Pressure Rating: 150LB ~ 2500LB

Temperature: -196Deg. C ~ 600Deg. C

Applicable Standards:

Design & Manufacture: API 6D

Face to Face: ASME B16.10

Flange Dimensions: ASME B16.5

Pressure & Temperature: ASME B16.34

Test & Inspection: API 598

Fire Safe: API 607

Visual Inspection: MSS-SP-55

Marking: MSS-SP-25

Fugitive Emission: ISO 15848

Valve Main Character:

Body Structure: Split Body, Side Entry

Construction: Floating Ball

Bore: Full Bore / Reduced Bore

Connection: RF Flange, SW, BW, Threaded NPT, etc.

Operation: Electric Motorized Ball Valve

Valve Main Features:

Locking Device

Anti blowout design

Fire safe design

Antistatic design

Automatic cavity relief

Electric Actautor Main Features:

Voltage: 380VAC, 400VAC, 415VAC, 440VAC, 480VAC, 220V, etc.

Frequency: 50HZ/60HZ

SQUIRREL CAGE MOTOR

EXPLOSION PROOF

INGRESIVE PROTECTION: IP 68

LOCAL / REMOTE CONTROL

POWER FAILURE: IN LAST POSITION

C/W SPACE HEATER

PODISTION INDICATOR

LCD SCREEN

EMERGENCY HANDWHEEL OPERATION

LAMP INDICATION

LIMIT SWITCH

TORQUE SWITCH

INPUT SIGNAL: OPEN / CLOSE / ESD

Material Available:

Applications:

TFC Valve Electric Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
