Concentric butterfly valves shall utilize an elastomeric liner into which the disc is an interference fit. These valves are normally of the wafer lug type.

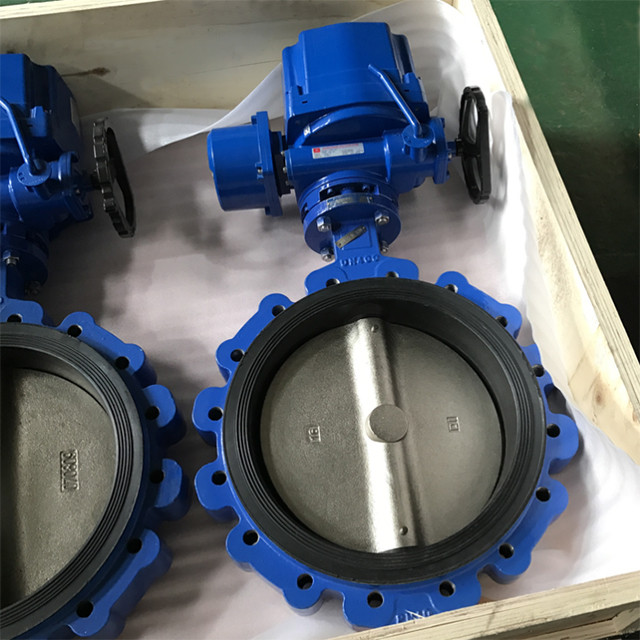

Online InquiryElectric Motorized Butterfly Valve
Concentric butterfly valves shall utilize an elastomeric liner into which the disc is an interference fit. These valves are normally of the wafer lug type.
Size and Range:
Size: 2” ~ 60”
Pressure Rating: 150LB
Temperature: -29Deg. C ~ 150Deg. C
Applicable Standards:
Design & Manufacture: API 609
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5, ASME B16.47 A/B
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Fugitive Emission: ISO 15848
Valve Main Character:
Body Structure: Lug Type Butterfly Valve
Construction: Concentric Rubber Lined Butterfly Valve
Disc Sealing: Soft Seated, NBR / EPDM / Viton / PTFE, etc.
Connection: Lug Type to suit ASME flange, or other standard.
Operation: Electric Butterfly Valve
Flow Direction: Bi-Direction
Electric Actautor Main Features:
Voltage: 380VAC, 400VAC, 415VAC, 440VAC, 480VAC, 220V, etc.
Frequency: 50HZ/60HZ
SQUIRREL CAGE MOTOR
EXPLOSION PROOF
INGRESIVE PROTECTION: IP 68
LOCAL / REMOTE CONTROL
POWER FAILURE: IN LAST POSITION
C/W SPACE HEATER
PODISTION INDICATOR
LCD SCREEN
EMERGENCY HANDWHEEL OPERATION
LAMP INDICATION
LIMIT SWITCH
TORQUE SWITCH
INPUT SIGNAL: OPEN / CLOSE / ESD
Material Available:
|
Carbon steel |
A216 Gr. WCB etc |
|
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
|
Cast Iron |
A126 B , A395, A536, GGG40, GG40, GG25 , etc |
|
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Applications:
TFC Valve Electric Motorized Butterfly Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
