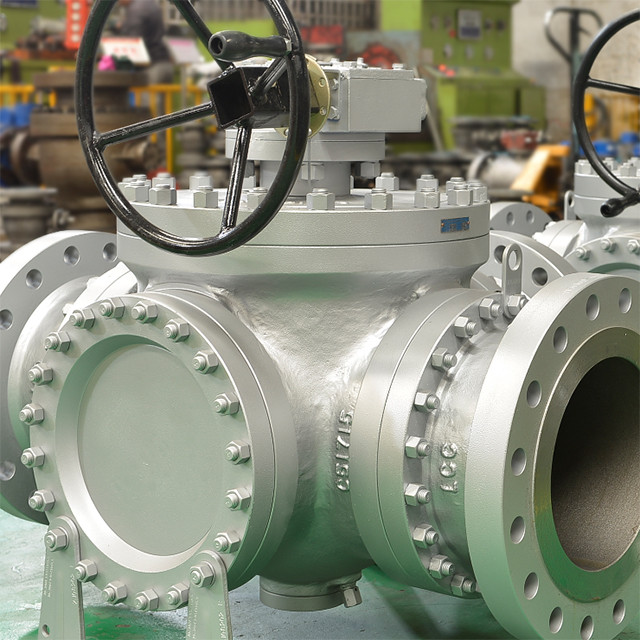

Online Inquiry3 way Ball Valve
Part of a ball valve which holds the ball on a fixed axis and which allows the ball to turn
Size and Range:
Size: 4” ~ 48”
Pressure Rating: 150LB ~ 2500LB
Temperature: -196Deg. C ~ 600Deg. C
Applicable Standards:
Design & Manufacture: API 6D
Face to Face: ASME B16.10
Flange Dimensions: ASME B16.5
Pressure & Temperature: ASME B16.34
Test & Inspection: API 598
Fire Safe: API 607
Visual Inspection: MSS-SP-55
Marking: MSS-SP-25
Fugitive Emission: ISO 15848
Main Character:
Body Structure: 3 way Split Body, Top Entry
Construction: three way Ball Valve
Bore: Full Bore / Reduced Bore
Connection: RF Flange, BW, etc.
Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.
Main Features:
Locking Device
Anti blowout design
Fire safe design
Antistatic design
Automatic cavity relief
Double Block & Bleed
Seat Sealant Injection
Stem Sealant Injection
Material Available:
|
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
|
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
|
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
|
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
|
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
|
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
|
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
|
Monel |
M30C , M35-1 , CZ100 , etc |
|
Inconel |
CY40 inconel 600 , etc |
|
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
|
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
Applications:
TFC Valve 3 Way Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
