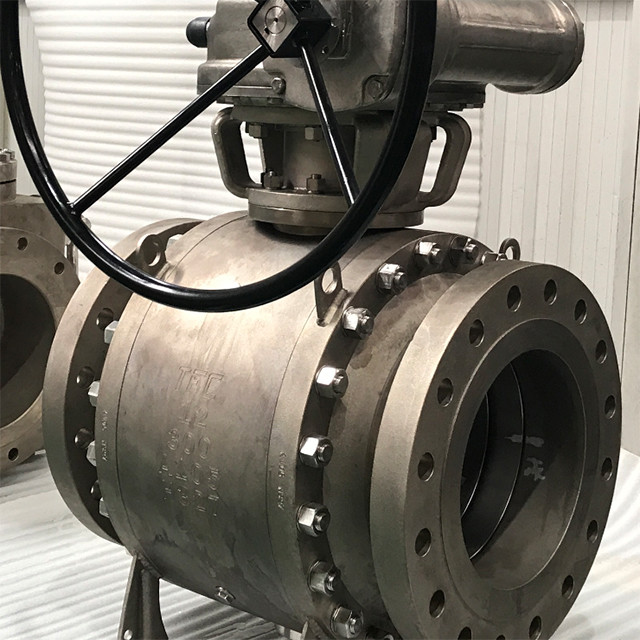

Forged Steel Trunnion Mounted ball Valve

Trunnion Mounted Ball Valve

Part of a ball valve which holds the ball on a fixed axis and which allows the ball to turn

Size and Range:

Size: 4” ~ 48”

Pressure Rating: 150LB ~ 2500LB

Temperature: -196Deg. C ~ 600Deg. C

Applicable Standards:

Design & Manufacture: API 6D

Face to Face: ASME B16.10

Flange Dimensions: ASME B16.5, ASME B16.47 A/B

Pressure & Temperature: ASME B16.34

Test & Inspection: API 598

Fire Safe: API 607

Visual Inspection: MSS-SP-55

Marking: MSS-SP-25

Fugitive Emission: ISO 15848

Main Character:

Body Structure: Split Body, Side Entry

Construction: Trunnion Mounted Ball Valve

Bore: Full Bore / Reduced Bore

Connection: RF Flange, BW, etc.

Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.

Main Features:

Locking Device

Anti blowout design

Fire safe design

Antistatic design

Automatic cavity relief

Double Block & Bleed

Seat Sealant Injection

Stem Sealant Injection

Material Available:

Applications:

TFC Valve Trunnion Mounted Ball Valve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Marine, Metallurgy, Paper & Pulp, Water & Waste Water Treatment, etc.
